Stancor Specs

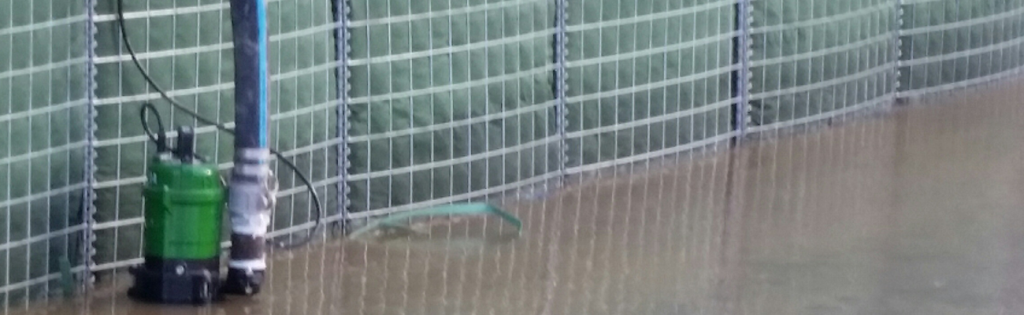

STANCOR ELECTRIC SUBMERSIBLE PUMPS

Removing water from construction and mining sites is a constant challenge that requires reliable pumps and quick turnkey services. Cashman Power, as your pump provider, can offer industry-leading Stancor electric submersible pumps. Stancor manufactures a broad line of MSHA-approved, explosion-proof pumps to handle the rigors of difficult operating environments. Pumps are constructed from light-weight alloys, including extensive use of stainless steel components for longer life. Rubber clad diffusors are utilized to extend life and maintain efficiency by making field adjustments easy.  As an authorized Stancor pump provider, Cashman also provides some of the longest cable lengths in the industry and MSHA-approved controls to further maximize service life. Dewatering pumps are available in 115, 230, 460, 575 and 950 volts and are made in the USA.

Features

• Heavy duty, cast aluminum motor housing
• Stainless steel cover, handle and discharge connection
• Standard 50' cable
• Wear-resistant, nitrile rubber/wear plates
• Made in USA

Applications

• Mines, quarries
• Heavy duty dewatering
• MSHA approved
• Explosion proof

Model Horsepower Voltage Max Flow Max Head Discharge
P20CE – 1P/3P    1.2-1.5 hp 230V/460V 150 GPM 58' 2"
P30CE – 1P/3P    3-4.6 hp 230V/460V 340-375 GPM 68' 3"
P40CE – HV    6.4 hp 230V/460V/3P 500 GPM 110' 4"
P40CE – HH    5 hp 230V/460V/3P 355 GPM 102' 4"
P50/S-1000 – HV    10 hp 230V/460V/3P 878 GPM 164’ 4"
P50/S-1000 – HH    10 hp 230V/460V/3P 500 GPM 121’ 4"
P60CE – HV    20 hp 230V/460V/3P 400 GPM 140’ 6"
P60CE – HH    20 hp 230V/460V/3P 200 GPM 300’ 4"
P70CE – HV    30 hp 230V/460V/3P 1800 GPM 140’ 6"
P70CE – HH    30 hp 230V/460V/3P 500 GPM 380’ 4"
P80CE – HV    45 hp 230V/460V/3P 460 GPM 190’ 6"
P80CE – HH    45 hp 230V/460V/3P 190 GPM 460’ 4"
SX7500 - HV    62 hp 460V/575V/3P 3800 GPM 135’ 10"
SX7500 - HH    75 hp 460V/575V/3P 1400 GPM 330’ 6"
