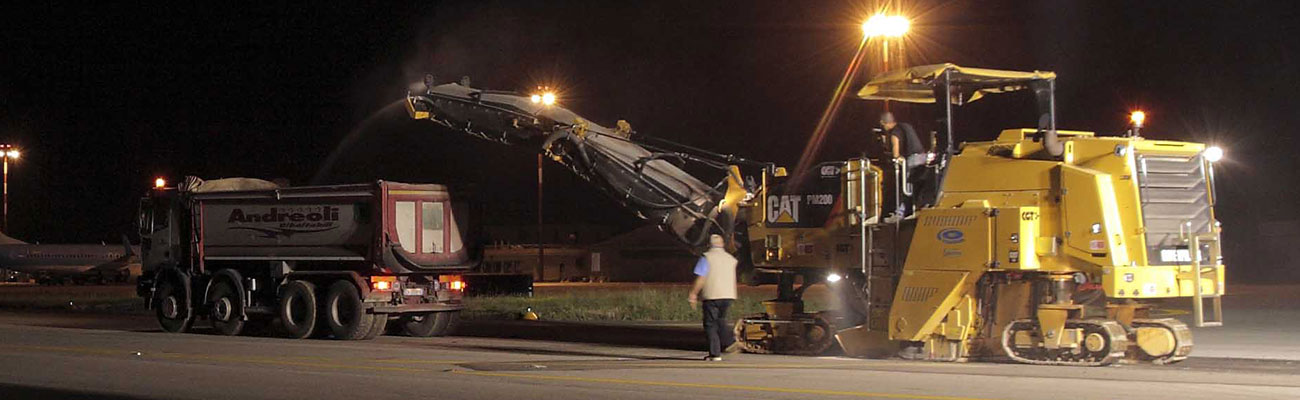

PM312 Track Undercarriage Cold Planer
Product description
The PM312 is an efficient, highly maneuverable milling machine with a cutting width of 1225 mm (48.2 in) that performs controlled full-depth removal of asphalt and concrete pavements in a single pass.
Cutting System
- Milling Width - 48.2in
- Maximum Milling Depth - 13in
- Rotor Speeds - 97 / 109 / 121 rpm
- Number of Bits - 106
Power Train
- Rated Power - 336.6HP
- Engine - C9.3
- Maximum Travel Speed - 3.4mile/h
- Maximum Milling Speed - 108ft/min
Weights
- Operating Weight - 48429lb
- Transport Weight - 44875lb
Dimensions
- Operating Length - Conveyor Up - 36.45ft
- Operating Width - 8.33ft
- Height - Canopy - 12.3ft
- Maximum Truck Clearance - 15.42ft
- Minimum Right Cutting Radius - 6.3ft
- Minimum Left Cutting Radius - 13.58ft
- Conveyor Swing - 60 degrees from center
- Transport Length - 30.58ft
- Transport Width - 8.33lb/in
- Transport Height - 9.84ft
Service Refill Capacities
- Diesel Exhaust Fluid (DEF) Tank - 5.8gal (US)
- Water Spray System Tank - 332.9gal (US)
- Fuel Tank - 158.5gal (US)
- Hydraulic Tank - 15.6gal (US)
- Engine Oil - 7.9gal (US)
- Cooling System - 16.4gal (US)
Standard Equipment:
-
- Operator Environment
-
- Sliding operator station
- Suspension seat
- Ground control keypad
- Single high-resolution LCD touchscreen display
- 12-volt power receptacle
-
- Cat Connect Technology
-
- Remote Troubleshoot capability
- Cat Product Link
- Cat GRADE
-
- Conveyor
-
- Material removal boost feature
-
- Rotor System
-
- Automatic plunge-cut
- Automatic transition feature
- Obstacle jump
- Three cutting speeds
- System K Rotor - Standard (15 mm)
-
- Powertrain
-
- Auto engine idle control
- High capacity cooling system
- Automatic load control
- Wheel undercarriage
-
- Hydraulic System
-
- Traction control
-
- Service And Maintenance
-
- Ports for Scheduled Oil Sampling (S·O·S℠)
- Platform-level engine oil dipsticks
- 1260 L (333 gal) onboard water tank
- Side water fill valve
- Water spray system
-
- Safety And Security
-
- Platform handrails
- Signaling/warning horn
- Halogen work lighting
Optional Equipment:
-
- Operator Environment
-
- Additional high-resolution LCD touchscreen display
- Powered canopy
- Windscreens
- Remote camera with cut edge guidance
-
- Cat Connect Technology
-
- Sonic sensor (averaging or string line)
- Ground level grade controls
-
- Conveyor
-
- Dust abatement system
- Hydraulic folding conveyor
- Remote camera (loading conveyor)
-
- Rotor System
-
- System K Rotor - Course (18 mm)
- System K Rotor - Fine (8 mm)
- Diamond bits
- Pneumatic bit removal tool
- Tool holder extractor
- Rotor turning device
- Ballast kit
-
- Powertrain
-
- Track undercarriage
- CE certificate
-
- Service And Maintenance
-
- Air compressor
- Accessory drive system
- High pressure washdown
- Low pressure washdown
- Additional water spray system
- Remote Flash
-
- Safety And Security
-
- LED work lighting (fixed, pole mounted, magnetic)
- Warning beacon (fixed)
- Truck signal lights
- Roading Lights
- Remote cameras (rear, front, cutting edges)
