ProCharge ER 4000

Product description

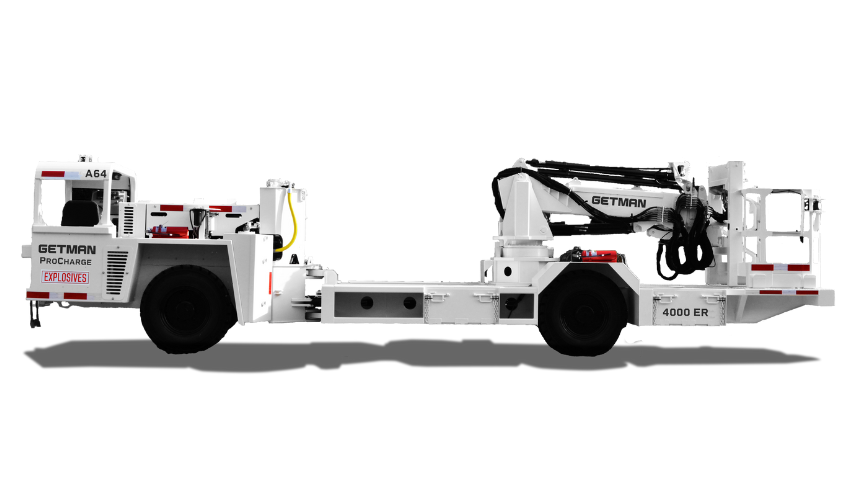

The Getman ProCharge ER 4000 Emulsion Ready Explosives Charger features a grounding reel with heavy-duty clamp, three laminated cap or booster storage compartments, and assorted deck configurations to accommodate various sized emulsion pumping packages. Configured face coverages reduce cycle times by ensuring each section can be charged without repositioning the machine. Optional onboard air compressor allows for fully contained operation, or a mine air package allows all charging operations to be performed using mine air for reduced emissions.

ProCharge Explosives Chargers protect miner safety through purpose-built design, including counterbalance valves on the lifting arm to prevent uncontrolled descent, fall arrest tie-off points in the man basket, optional FOPS canopy, engine stop and fire suppression actuation controls in the man basket, and hydraulic stabilizers with internal pilot check valves to ensure stability.

The ProCharge ER 4000 Emulsion Ready machine is offered in 3 frame options:

1350 – S Frame

  • Gross Emulsion Deck Capacity: 5,650 lbs.
    • (Kessler 41 Axles / 10.00X20 / 2,563 kg)
  • Gross Emulsion Deck Capacity: 12,500 lbs.
    • (Kessler 72 Axles / 12.00X20 / 5,670 kg)
  • Emulsion Deck Available Width: 90 in (2,283 mm)
  • Emulsion Deck Available Depth: 53 in (1,350 mm)

1960 – M Frame

  • Gross Emulsion Deck Capacity
    • 6,200 lbs. (Kessler 41 Axles / 10.00X20 / 2,812 kg)
  • Gross Emulsion Deck Capacity
    • 13,200 lbs. (Kessler 72 Axles / 12.00X20 / 5,987 kg )
  • Emulsion Deck Available Width: 90 in (2,283 mm)
  • Emulsion Deck Available Depth: 77 in (1,960 mm)

2270 – L Frame

  • Gross Emulsion Deck Capacity
    • 6,000 lbs. (Kessler 41 Axles / 10.00X20 / 2,722 kg)
  • Gross Emulsion Deck Capacity
    • 13,000 lbs. (Kessler 72 Axles / 12.00X20/ 5,897 kg)
  • Emulsion Deck Available Width: 90 in (2,283 mm)
  • Emulsion Deck Available Depth: 89 in (2,270 mm)
